Foerster SIGMATEST 2.070 Eddy Current Conductivity Meter (SIGMATEST-2.070)

    Foerster SIGMATEST 2.070 Eddy Current Conductivity Meter
    Starting at:

    $7,620.00 1. Quote Required

    IN STOCK
    Click Here to view the product replaced by this product.

    This product has been discontinued.

    ADD TO CART

    Share this product
    • NEW Product
    • Product Codes:
      9134743
    • Tech Support Available
    • Product Weight: 10.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

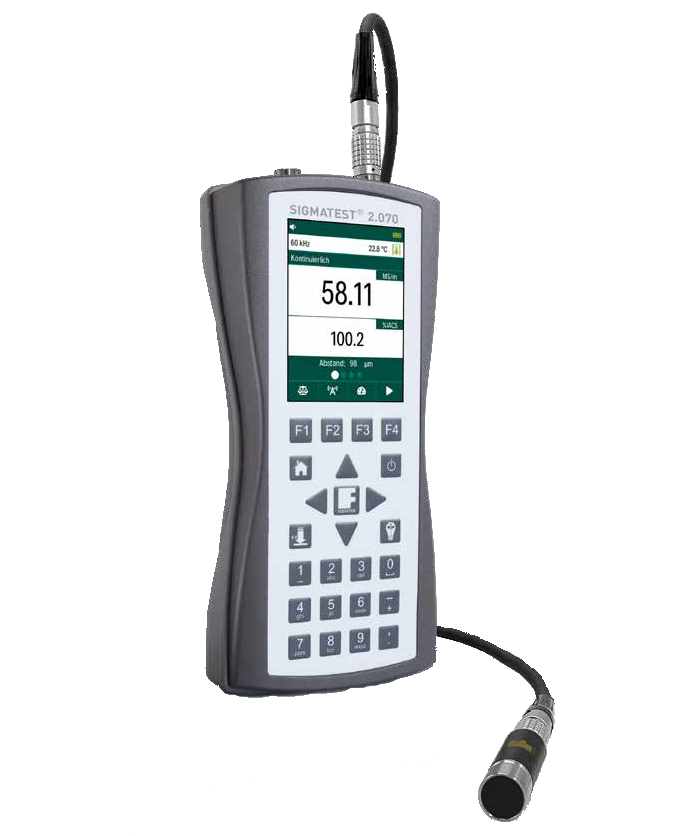

    The Foerster SIGMATEST 2.070 is a handheld portable eddy current testing device that measures the electrical conductivity of non-ferromagnetic material based on the complex impedance of the unit's measuring probe.

    The Foerster SIGMATEST 2.070 determines material properties both physical and technical. Normal uses include ensuring the quality of products being manufactured, testing combination materials, and sorting metal, alloys, and scrap. The maintenance of aircrafts, determining heat damage, and in-process controls during production and processing in the metallurgy industry also utilize the unit.

    The Foerster SIGMATEST 2.070 has five different excitation frequencies and remarkably high measuring accuracy. The unit keeps a high level of accuracy even at a high frequency of 960kHz, which allows the measurements on very thin pieces with accuracy.

    The device also automatically standardizes the measured value of the electrical conductivity to 20°C because of integrated temperature compensation. The quality of the measurements conforms to Boeing (BAC561) and Airbus standards.

    The Foerster SIGMATEST 2.070 offers two operating modes: Touch or Continuous. The continuous mode can be used to scan surfaces and show the measurement result in a chart and the touch can be used to measure a single value. The recording function can be used to save all measurements.

    Features

    • Five measuring frequencies 60, 120, 240, 480, 960 kHz The high frequency of 960 kHz allows accurate electrical conductivity measurement on very thin pieces
    • 50 measurements per second
    • Easy operation in either touch or continous mode
    • Internal and external temperature compensation
    • Measurement possible up to 0.75 mm distance from the test item
    • Measurement range from 0.5 to 65 MS/m (1-112 % IACS)
    • Remote control by an external PC is possible via Ethernet standard RJ45. The interface allows complete control over the instrument and an integration in automated systems
    • SD-card slot for saving nearly an unlimited amount of test data
    • Probe characteristics are directly saved on the probe and automatically read by the device
    • Multilanguage operating system
    • Robust device design for operation on site

    Videos

    Specs

    Measurement range: 0.5 to 65 MS/m (1 to 112 % IACS)
    Absolute accuracy  +/-0.7 % of measured value @60kHz, 14mm probe
    Resolution: +/-0.1 % of measured value
    Automatic distance compensation  Up to 750 μm (0.03 inch)
    Operating frequencies: 60, 120, 240, 480, 960 kHz
    LCD display 480 x 640 pixel
    Power Supply 5V DC / 3000 mA
    Operating time per set of batteries  4 h
    Operating voltage Power supply and battery charges adaptable to the operating voltage in any country
    Interfaces 10 pin LEMO connector, SD card slot, Ethernet RJ45, 100 Mbit/s
    Temperature range 0°C to +40°C (32 ° to 104°F)
    Humidity 5% to 85%
    Dimension 211 x 102 x 40mm
    Weight 0.62kg
    Standards DIN 50994, ASTM E1004, DIN EN 2001-1
