FlawTech Standard Visual Kit (VK-1)

    FlawTech Standard Visual Kit
    Starting at:

    $2,195.00 1. Quote Required



    This product has been discontinued.


    • Product Code.:
      VK-1
    • Tech Support Available
    • Product Weight: 37.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

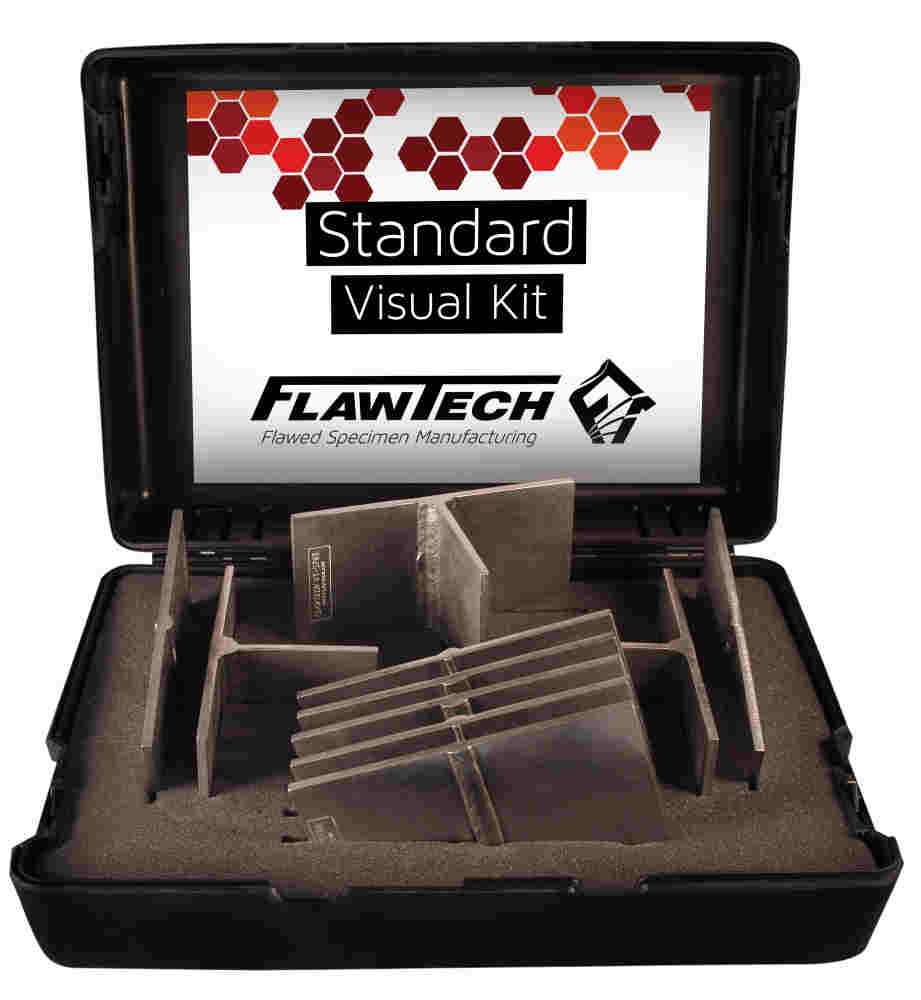

    The FlawTech Standard Visual Kit includes 10 Specimens, including 7 Plates and 3 Tees for a total of 20 Discontinuities. Plates measure: .25"T x 4" x 8." The Tees measure: .25"T x 4" x 8" x 4." Randomly placed, each Specimen contains 2 "REAL FLAWS." A rugged, protective carrying case (6" x 16" x 20") neatly holds all 10 Specimens.

    Documentation package includes:

    • Certificate of Conformance
    • CAD Drawings
    • Test Sheets

    Flaws Included:

    • #20 - Crater Crack SV (surface stop-start area)
    • #32 - Porosity SV (surface breaking)
    • #33 - Porosity fillet (surface breaking)
    • #56 - Incomplete Root Penetration SV
    • #59 - Incomplete Groove Weld (crown area)
    • #70 - Root Concavity SV
    • #71 - Excess Root Penetration SV
    • #72 - Misalignment Root & Crown SV
    • #73 - Uneven Leg Length Fillet
    • #74 - Excess Crown SV
    • #75 - Excess Crown Fillet
    • #76 - Concave Crown SV
    • #77 - Concave Crown Fillet
    • #78 - Undercut SV
    • #79 - Undercut Fillet
    • #80 - Overlap Fillet
    • #90 - Weld Splatter SV
    • #91 - Weld Splatter on Filler

    Specs

    Specifications:
    • Material: Carbon Steel
    • 10 Specimens - 2 Flaws each
    • (7) Plates: 0.25”T x 4” x 8”
    • (3) Tee: 0.25″T x 4” x 8” x 4”



    Package Includes

    • 10 Specimens
    • Documentation Package
    • 1 Carrying Case: 6” x 16” x 20” each
