Wilson UH4000 Series Universal Hardness Tester (UH4000-SERIES)

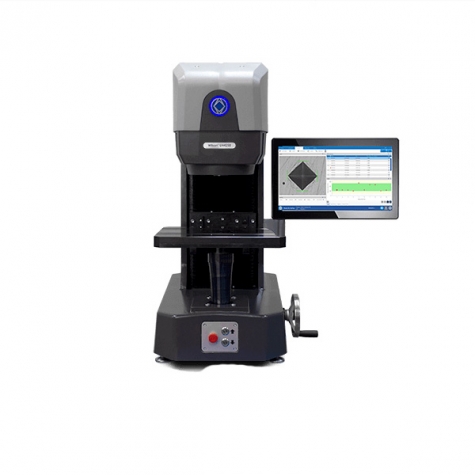

    Wilson UH4000 Series Universal Hardness Tester


    Quote Required Quote Required



    This product has been discontinued.

    REQUEST QUOTE

    Share this product
    • NEW Product
    • Product Codes:
      W4250
    • Tech Support Available
    • Product Weight: 0.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description



    The Wilson UH4000 series universal hardness tester is designed for high volume production labs and production floor environments. As a Universal hardness tester, the UH4000 series can perform several different hardness scales in one machine including Vickers, Knoop, Brinell and Rockwell, in most cases at higher loads (>5 kgf). Tests are carried out via its DiaMet software, the most intuitive hardness control software on the market, ensuring easy and repeatable, automatic testing.


    Wide Range of Test Loads

    The UH4000 series is available in two different configurations - the UH4250 and UH4750. The UH4250 features test loads of 0.5-250 kgf, and the UH4750  has a broader range on the high-end going from 3-750 kgf. Both the UH4250 and UH4750 are sturdy, reliable machines and suitable for demanding and rough workshop environments.

    Fast Testing Cycles & No Manual Indenter Changes

    The UH4000 series testers offer rapid testing cycles and a newly designed turret that holds several indenters and objectives. These series of testers eliminate the need for manual indenter/objective changes when using a variety of testing methods.

    Sturdy & Designed for Heavy/Big Parts

    All of the UH4000 testers are made from a very robust and sturdy Aluminum alloy, including the turret cover, which protects the highly accurate hardness measurement system and turret assembly from damage or external influences. Each tester can test heavy and big parts due to its large T-slot stage (300mm [11.8in] x 400mm [15.7in]) and the weight capacity.

    Applications

    Wilson has designed the UH4000 series to be well suited for the following applications:

    • Broad testing across automotive and aerospace industries
    • Hardness of castings and forgings
    • Flat and cylindrical workpieces
    • Product quality control testing
    • Steels, non-ferrous metals, stainless steels, heat treated materials
    • Cemented carbides, ceramics
    • Plastics and carbon testing

    Features

    • Rockwell, Vickers, Knoop and Brinell hardness testing capabilities
    • Rigid machine design for heavy workshop conditions
    • Ease of operation with DiaMet software
    • Flexible configuration for specific needs
    • 8 position turret
    • Unique clamping device and Ringlight option
    • Safety shield

    Videos

    Specs

    TESTER UH4250 UH4750
    HARDNESS SCALES HV 0.5 - HB 10/250 HV 3 - HBW 10/750
    TEST LOAD RANGE 0.5-250 kgf 3-750 kgf
    TEST LOAD TYPE Closed loop
    OPTICS 5-megapixel USB 3 digital camera, with digital zoom and autofocus
    TURRET 8 positions for objectives and indenters
    OBJECTIVES LONG 2.5x (optional with ring light)
    WORKING DISTANCE (OPTIONAL)

    5x
    10x
    20x
    40x
    50x
    INDENTERS (OPTIONAL) Brinell 1mm, 2.5mm, 5mm and 10mm carbide balls
    Rockwell diamond cone, 1/16”, 1/8”, ¼”, ½” carbide ball indenters
    Vickers diamond
    Knoop diamond
    OPTICAL MEASUREMENT Manual or Auto-measurement of indent images
    BRINELL TEST PROCEDURES
    ISO 6506-1, ASTM E10    		 HB1: 1, 2.5, 5, 10, 30
    HB2.5: 6.25, 15.625, 31.25, 62.5, 187.5
    HB5: 25, 62.5, 125, 250, 750*
    HB10: 100, 250, 500*
    VICKERS TEST PROCEDURES
    ISO 6507-1, ASTM E92    		 HV0.5, HV1, HV2, HV3, HV5, HV10, HV20, HV30, HV50, HV100
    ROCKWELL TEST PROCEDURES
    ISO 6508-1, ASTM E18

    A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, 15N, 30N, 45N, 15T, 30T, 45T, 15W,
    30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y
    KNOOP TEST PROCEDURES
    ISO 4545-1, ASTM E384    		 HK0.5, HK1, HK2
    PLASTIC TESTING BALL
    INDENTATION ISO 2039-1    		  HB5: 49N, 132N, 358N, 961N

    PLASTIC TESTING BALL
    INDENTATION ISO 2039-2

    		 HRR, HRL, HRM, HRE
    ROCKWELL CARBON TESTING BALL INDENTATION DIN 51917 HR2.5: 7
    HR5: 7, 20, 40, 60, 100, 150
    HR10: 20, 40, 60, 100, 150
    BRINELL DEPTH TESTING
    (NON-STANDARDIZED)
    HBW-T    		  HB-T2.5: 6.25, 15.625, 31.25, 62.5, 187.5
    HB-T5: 25, 62.5, 125, 250, 750*
    HB-T10: 100, 250, 500*
    PC External standalone PC with 24” monitor or 19,5” touch monitor
    MACHINE CONTROL DiaMet software
    Z SPINDLE  Manual hand wheel and automatic Z axis drive
    CLAMPING DEVICE
    (OPTIONAL)    		  Unique clamping fork to fix the sample for testing, can be switched on and off
    POSITIONING LASER (OPTIONAL)  Cross target, class 1, 650nm
    RING LIGHT (OPTIONAL) For 2.5x objective, simplifies soft Brinell measurements
    MAXIMUM SPECIMEN HEIGHT 300 mm [11.8 in]
    MAXIMUM SPECIMEN WEIGHT 70 kg [154 lb]
    DEPTH FROM CENTER LINE 274 mm [10.7 in]
    TEST STAGE DIMENSIONS T-slot stage with 12mm slot width, 300mm [11.8in] x 400mm [15.7in]
    OPERATING TEMPERATURE RANGE 10° to 38°C [50° to 100°F]
    HUMIDITY 10% - 80% non-condensing
    MACHINE DIMENSIONS (L × W × H) 704 mm [28 in] × 534 mm [21 in] × 995 mm [39.2 in]
    ACCESSORY All anvils with 25mm pin
    MACHINE NET WEIGHT Ca. 300 kg [660 lb]
    POWER SUPPLY 110 - 240V / 50 - 60Hz
