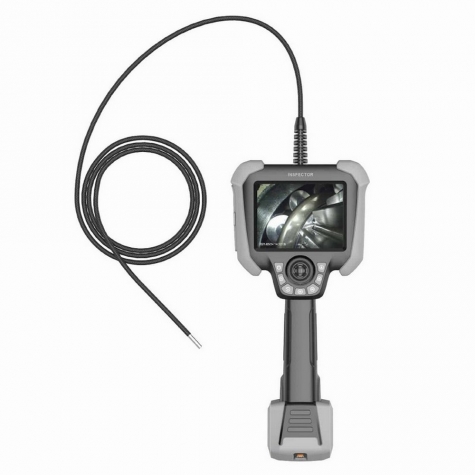

RVI Infinity Innovation's Inspector S industrial endoscope\borescope\videoscope (RVI-S)
The latest technology of HD imager + freely interchangeable probes
HD with the latest technology
Video imaging components
Inspector S industrial videoscope is equipped with the latest technology of high-definition video imaging components, resolution up to 1280x720, available pixels up to 921,600.00,high-intensity power light source, and an excellent visual processor, so as to provide you with clearer still pictures and video to help operators determine defects faster and more accurately.
Advanced probe freely interchangeable technology
The Inspector S industrial borescope probes can be replaced quickly according to different working conditions. The diameter of the probe is available of 1.2mm, 1.6mm, 2.4mm, 2.8mm, 4mm, and 6mm. Different working lengths are available from 2M to 10M. Save equipment purchase costs and improve after-sales service efficiency
Powerful and portable
Inspector S industrial endoscope has a built-in Intel high-performance processor, large-capacity high-speed memory, 5-inch IPS wide-angle high-definition LCD screen, and resolution up to XVGA as 1024x768, which can easily handle various complex tasks, the system adopts durable and ergonomically designed integrated handheld operation. The overall easy operation is convenient. Store and carry.
High-Power High-brightness LED rear design
Inspector S industrial videoscope equip with a high-power and high-brightness LED lighting source, which guarantees the lighting requirements for visual inspection in large spaces. For example, inside a large wind turbine gearbox or a gas turbine, it has a wider application space than traditional LED front light output design.
Flexible single-finger articulation technology
Inspector S industrial borescope is working with the latest single-finger articulation technology, which is easy to operate while ensuring precise control of the guidance. Compared with traditional articulation technology, it is more accurate and stable. The new design ensures stable performance of the articulation mechanism system, which is easy to repair and reduces maintenance costs.
Field-based industrial design
Inspector S industrial videoscope takes into account the maintenance cost control in the later period
The system is built with industrial-grade materials and a durable design
Perfectly face the harsh industrial site testing environment
At the same time, reduce the maintenance cost of the equipment in the later stage
Reduce the difficulty and risk of maintenance personnel
Intuitive operation interface
Inspector S industrial endoscope specifically designed the Interactive software for remote visual inspection
The most commonly used functions are displayed on graphical buttons to facilitate the operator to quickly find the desired function and reduce the cost of learning, which is easy to use and practical.
Excellent depth of field Lens design
The industry’s leading customized depth of field design can be tailored to different depths of the field according to specific application requirements. For example, the depth of field can observe more tooth surface and the inside of the bearing roller, without cumbersome replacement of different field optical lens depths.
Typical Depth Of View (DOV) range options are 3mm-80mm,5mm-100mm,8mm-150mm, and 10-200mm, and customized requirements are acceptable.
Suitable for different Industrial sector
Reduce potential downtime for maintenance and personal injury
Provide maximum value for asset managers
Aerospace
· Turbine and engine · Combustion chamber
· High and low pressure compressor · Wing, fuel tank
· Synthetic materials and components, etc.
Petrochemical
· Boiler plant, pressure vessel · Pressure pipeline, process pipeline · Reactor, heat exchanger
Power generation
· Excess and foreign matter grabbing · Turbine blade inspection
· Generator internal inspection
· Main steam pipeline, condenser
More industry applications
· Water pump
· Engine · Generator · Gearbox · Pipeline
· Turbine blades · Compressors
