    Description

    Please contact Berg Engineering at 1-847-577-3980 for daily, weekly, and monthly package rental cost and availability.

    Rental Package includes:

    • SonoDur2 Portable Hardness Tester
    • Probe (Please specify)
    • Probe Cable
    • Operating Manual
    • Carry Case
    • ISO 17025 Certificate of Calibration
    • Other items available upon request, must specify, may increase package cost.

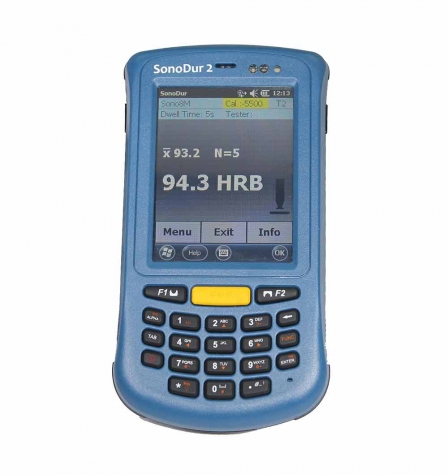

    The Berg rental NewSonic SonoDur2 UCI Hardness Tester comes in a variety of packages and we will match the handheld or motorized probe you need with the hardness testing you are performing. The SonoDur2 is the latest UCI hardness tester and is a replacement for the GE MIC 10 and MIC 20 series. The SonoDur2 uses a Vickers diamond for rapid hardness testing and can be applied in a vareity of hardness applications including manufacturing, quality assurance and production. EN ISO 18265 material tables come with the unit. Meets ASTM A1038. The Vickers diamonds testing pressure is digitally displayed and refreshed after each measurement.

    The SonoDur2's intuitive menu system enables reassessments for other hardness scales and adheres to other applicable standards or the particular probe in use. The unit also features recognition and test controls with calibration, material reassessment table, time of probe penetration, operator name and tolerance thresholds.

    Wide-range testing ability: The SonoDur2 makes it possible to measure soft aluminum (20HB) to harder metals (approx. 1600HV) using a probe.

    The SonoDur2 can work with probes ranging in force from 1N to 100N, as well as longer probes for testing areas that are difficult to reach.

    Integrated memory: The unit comes with 4GB of memory (can be expanded to 32GB) to offer enough storage space to store an almost limitless number of measurements. Transmitting data can be accomplished via USB making documentation simple and easy. The unit can also connect through Wi-Fi and Bluetooth.

    Features

    • Standardised, robust, easy, fast and precise German engineering
    • Quick and precise on-site measurements
    • Standardised in accordance with ASTM A 1038 and DIN 50159-1-2
    • High contrast, colour touch screen with alternating colouration of measured values in the event of an alarm - all the essential information at one glance.
    • Automatic reassessment into HB, HK, HRA, HRB, HRC, HRF, HRD, HR45, HS, HK, MPa in accordance with EN ISO 18265 and ASTM E 140.
    • Signal is processed in the measurement probe, probe connection cable is extendable.
    • Digital transmission of the hardness value via USB, enabling simple integration into automatic testing systems.
    • Alignment data and measurement series can be saved and retrieved for later use.

    Videos

    Specs

    Measuring Specifications

    Measuring principle

    UCI Method, corresponds to DIN 50159, ASTM A1038

    Test indenter

    Vickers diamond 136°

    Test loads

    Newton scale (1kgf = 9.81 N)

    Motor probes: 1N (0.1 kgf), 3N (0.3kgf) and 8.6 N (0.8 kgf)
    Handheld Probes: 10N (1 kgf), 49N (5kgf), 98N (10kgf)
    (Other test loads on request)

    Hardness scales and range

    Note:Conversions are acc. to latest ASTM E140, EN ISO 18265, and DIN 50150. Conversions into tensile strength: 98N (10kgf) test load only.

    Vickers HV 10 – 9999
    Brinell HB 76 – 618
    Knoop HK 87 – 920 (ASTM only)
    Rockwell HRB 41 – 105
    Rockwell HRF 82,6 – 115,1
    Rockwell HRC 20,3 – 68
    Rockwell HRA 60,7 – 85,6
    Rockwell HRD 40,3 - 76,9 (EN ISO 18265 only)
    HR45N 19,9 – 75,4
    Tensile Strenght MPa (N/mm2) 255 – 2180 (EN ISO 18265 only)

    Measurement uncertainty

    < 3% of the average out of 5 measurements relative to the plate value

    Relative repeatability

    < 3% (range relative to the average out of 5 measurements on reference block 300HV using motor probes 3N, 8.6N)

    Instrument

     Processor and Memory

    TI Cortex A8 / 256 MB SDRAM / 512 MB Flash / micro

    SD Card up to 32 GB

     Operating system

    Windows Embedded Handheld (WM 6.5)

     Keypad

    Keypad (21-key-Mobile alphanumeric keypad with backlight) and full alphanumeric software keyboard.

     Power

    Main battery: 3,7V / 2600mAh, LiPo hard pack, quick exchange

    Charging time: <2h to 80% capacity (Instrument off)

    Shelf Hours: Up to 6 month

    AC Power supply/charger: 90V to 264VAC 50/60Hz to 5VDC

    Display

    3.5" color transflective TFT (320x240) with 4W-resistive touch screen, high brigthness LED-backlight (440 Cd/m2), adjustable

    Interfaces

    USB1.1 (Host and Device), micro SD-card, WLAN, Bluetooth version 2.1 +EDR,CLASS2

    Dust/Water-splash proof

    IP54 level (compliant with IEC60529 standard)

    Drop test

    1.2-Meter / 4 Feet Drop Threshold

    Tumble Test

    150 1.65 ft./0.5 m tumbles (equivalent to 300 consecutive drops) at room temperature; meets and exceeds applicable IEC tumble specifications

    Vibration test

    MIL-STD 810G Method 514.5, figure 514.5C-1; 1 hour per axis

    Instrument Language

    German, English, more on request

    Mechanical and Environmental (Instrument and probe)

    Operating time

    >8 hours in measurement operation (depending on system performance, temperature and instrument settings), up to 6 hours continuous operation, quick exchangeable battery pack

    Operating Temperature

    Probe: 0°C to ~ +50°C

    Instrument: -10° ~ +50°C // Charging +10°C ~ +45°C

    Storage Temperature

    -20°C ~ +60°C

    Humidity

    Max. 90%, non-condensing

    Dimensions

    Instrument ca. 132x78x22 mm

    Motor probe Ø38mm, L=190 mm

    Handheld probe Ø25 mm, L=176 mm

    (free length oscillation rod ca. 12,5 mm)

    Handheld probe  Ø25 mm, L=207 mm

    (free length oscillation rod ca. 43 mm)

    Weight

    Instrument ca. 280 gr

    Handheld probe ca. 280 gr

    Motor probe ca. 370 gr
