Mitutoyo QM Height Series High Performance Height Gage (QM-HEIGHT-SERIES)

    Mitutoyo QM Height Series High Performance Height Gage
    Starting at:

    $4,030.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • NEW Product
    • Product Codes:
      64PKA094B
    • Tech Support Available
    • Product Weight: 60.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

    Replacement for 64PKA094A, 64PKA095A, 64PKA129A, 64PKA130A.

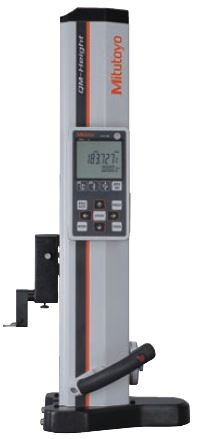

    The Mitutoyo QM Height Gage offers best-in-class accuracy, increased functionality coupled with a large, intuitive LCD interface. The QM Height Gage has an optional pneumatic system which enables smooth movement over a surface plate. Most measurements can be made with a single keystroke, and results can be saved and transferred via USB or wirelessly using U-WAVE-T technology directly to Excel or SPC software on a PC.

    Highly Accurate & Wide Range of Measurements

    The QM Height Gages come in either 14" or 24" models, each with ±(2.4+2.1L/600) μm accuracy and repeatability of 2σ ≤ 1.8 μm. The QM Height Gage measures height, height difference (step), inside/outside widths, inside/outside diameters, circle pitch, free-form surface maximum/minimum heights and height difference by scanning measurement. Two subdisplay modes display the value from the previous measurements or the value from the zero/origin point. Origin points can also be set from hole centers.

    Versatile with a Variety of Styluses

    The QM Height Gage has a variety of styluses/probes to measure distances for a variety of applications. If you are are unsure of which stylus you may need, please contact a Berg Sales Engineer at 847-577-3980 or email info@bergeng.com.

    Long Battery Life/AC Adapter

    The QM Height Gage can operate for up to 1,200 hours on a single set of 4 AA batteries and can use rechargeable NiMH batteries as well. There is also an optional AC adater for continuous use.

    Features

    Best-in-class accuracy ±(2.4+2.1L/600) μm

    Built-in pneumatic flotation system enables smooth movement over a surface plate. Models without the air suspension feature are also available.

    Simple-to-use control panel enables most measurements to be made with a single keystroke.

    Battery life of 1200 hours in continuous use with four AA batteries, an improvement from 300 hours. (Four commercially available nickel hydride batteries can also be used.)

    Install the optional U-WAVE-T measurement data communication system to output measurement data directly to Excel or SPC software on your PC.

    • The USB communication driver can be downloaded from the Mitutoyo website. (Communication software is separately required.)

    GO/±NG judgment by LED and display symbols

    • LEDs indicate tolerance judgment status – green for GO, red for +NG, and orange for -NG. Status is also indicated by corresponding symbols appearing on the display.

    Intuitive buttons and layout

    • The symbols are for frequently used keys.
    • Cross-keys provide better operability.

    Inside/outside diameters, maximum/minimum heights and displacement can be measured using a standard probe

    • Besides height measurement, Mitutoyo’s proprietary mechanism and firmware enables scanning measurement of inside/outside diameters, maximum/minimum heights, and height differences.

    ABSOLUTE encoder maintains the origin

    • The electromagnetic induction type ABSOLUTE encoder maintains the origin. There is no need to set the origin after turning on the power. (Except when there is a considerable environmental change.)

    New d2 Digimatic and USB outputs

    • Digimatic and USB ports are provided as standard. Using the U-WAVE-T measurement data wireless communication system enables instant transmission of measurement data to a PC via wireless communication which reduces manual input errors and improves data reliability and operational efficiency.

    Power supply

    • Four alkaline AA/LR6 batteries (standard accessories)
    • Also operates on four NiMH AA rechargeable batteries
    • AC adapter (packages available with or without AC adapter)
    • 1200 hours of battery life in continuous use

    Probe elevation wheel

    • Used for measurement, allowing fine or coarse adjustment of probe height.

    Air-suspension feature

    • Pressing a button on the grip activates the internal air pump. The base rises on a cushion of air and is able to be moved smoothly over the surface plate.

    Videos

    Specs

    Order No.   Package w/AC adatper  64PKA094B  64PKA095B 64PKA129B  64PKA130B
    Inch/Metric Main unit 518-241 518-243 518-245 518-247
    Measuring range (Stroke)  (14 in / 350 mm) (24 in / 600 mm) (14 in / 350 mm) (24 in / 600 mm)
    Resolution Inch/Metric

    0.001/0.005 mm
    0.00005/0.0001/0.0002 in
    Accuracy at 20 ˚C  Measurement*1 ± (2.4 + 2.1L/600) μm​
    Repeatability*1 2σ ≤ 1.8 μm​
    Perpendicularity*2 (20˚C)  7 μm  12 μm 7 μm 12 μm
    Guiding method  Roller bearing
    Drive method  Manual (wheel)
    Measurement principle  Electromagnetic induction absolute encoder
    Measuring force  1.5±0.5 N
    Data output ports  Digimatic / Digimatic 2 / USB*3
    Air-suspension feature  Not included  Included (for positioning only)*4
    Power supply  Alkaline AA /LR6 batteries × 4 (standard accessories) / AC adapter (optional accessory)*5
    Supports NiMH (HR6) rechargeable batteries × 4​
    Battery life guidelines*6​   Approx. 1200 hours (without using the air-suspension feature)​
    Approx. 90 hours (when using the air-suspension feature)​
    Mass  25 kg 29 kg 26 kg 30 kg
    Size (mm)

    Stroke 350 mm type: 280(W) x 273(D) x 784(H) mm
    Stroke 600 mm type: 280(W) x 273(D) x 1016(H) mm​
    Operating temperature range (recommended)  0 to 40˚C (10 to 30˚C)
    Operating humidity range  20 to 80% RH (non-condensing)
    Storage temperature range  -10˚C to 50˚C
    Storage humidity range 5 to 90% RH (non-condensing)


    *1 The indication accuracy and repeatability represent the values obtained from the height measurement of a flat surface using the standard holder with ø5 ball contact point. In the case of diameter, minimum (maximum) value, circle pitch or difference measurement, measuring errors may be larger than the accuracy ratings listed in the table due to variations in measuring force during a scanning measurement, which differs from height measurement.

    *2 Indicates the value obtained from the measurement of a straight surface placed perpendicular to the the base reference surface using the Lever Head (MLH-521) and Mu-checker (M-551).

    *3 Requires special communication driver and software. Consult Berg Engineering.

    *4 When using a model with the air-suspension feature, it is advisable to use a JIS 1 class, or higher, surface plate. Using on surfaces with scratches or unevenness may prevent the system operating to the specified performance.

    *5 The AC adapter cannot be used to recharge rechargeable batteries.

    *6 Battery life depends on the operating conditions. In particular, it is more economical to use the optional AC adapter to power the instrument if the application requires prolonged use of the air-suspension feature.
