DeFelsko PosiTector DPM Dew Point Meter (POSITECTOR-DPM)

    DeFelsko PosiTector DPM Dew Point Meter
    Starting at:

    $445.00 1. Quote Required



    This product has been discontinued.


    • Product Codes:
      DPM1
    • FREE Ground Shipping
    • Tech Support Available
    • Product Weight: 1.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    The DeFelsko DPM Dew Point Meter measures and records climatic conditions such as relative humidity, surface temperature, air temperature, dew point temperature, and wind speed. The Dew Point Meter also finds the difference between surface and dew point temperatures. The DPM is ideal for environmental monitoring and surface preparation. This Gage is weatherproof - resistant to water, dust, oil, solvent, and acid. When using the Dew Point Meter, there's no need to consult complex tables or a slide rule calculator. All readings are being updated constantly, on top of displaying simultaneously. If climate conditions are unsuitable for painting, an alarm will indicate the difference.

    The DPM Dew Point Meter is available in both Standard and Advanced models, with user's choice of integral or cabled probe. The integral probe has several options with varying features, including a direct contact surface temperature sensor, an infrared surface temperature sensor, a cabled surface temperature sensor, and wind speed. The cabled probe includes 0.5" NPT threads. Standard models can store or download up to 1000 readings per probe and Advanced models can store or download up to 250,000 readings in up to 1,000 batches and sub-batches. The Advanced gage model also utilizes Wifi and Bluetooth technology.

    Features

    • Reset feature to instantly restore factory settings
      • Hold function for manually recording measurement data
      • Auto Log Mode for recording environmental parameters at user-selected intervals
    • Weatherproof - resistant to water, dust, oil, solvent, and acid
    • High contrast LCD screen with backlit display
    • Celsius/Fahrenheit switchable
    • Uses alkaline or rechargeable batteries
    • Fast-response precision sensors provide accurate, repeatable readings
    • Alarm indicates when climate conditions are unsuitable for painting
    • Bluetooth compatibility

    Videos

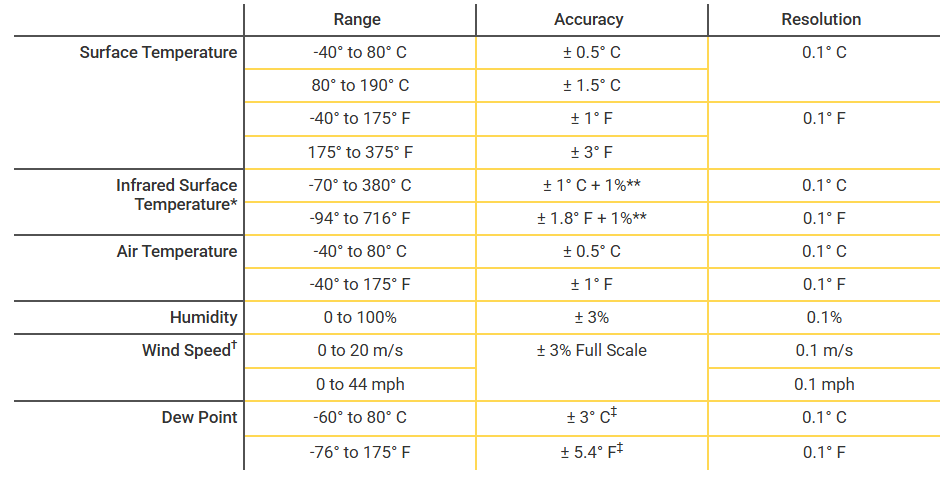

    Specs

      Range Accuracy Resolution
    Surface Temperature –40Ëš to 80Ëš C ± 0.5Ëš C 0.1Ëš C
    80Ëš to 190Ëš C ± 1.5Ëš C
    –40Ëš to 175Ëš F ± 1Ëš F 0.1Ëš F
    175Ëš to 375Ëš F ± 3Ëš F
    Infrared Surface Temperature* –70Ëš to 380Ëš C ± 1ËšC + 1%** 0.1Ëš C
    –94Ëš to 716Ëš F ± 2ËšF + 1%** 0.1Ëš F
    Air Temperature –40Ëš to 80Ëš C ± 0.5Ëš C 0.1Ëš C
    –40Ëš to 175Ëš F ± 1Ëš F 0.1Ëš F
    Humidity 0 to 100% ± 3% 0.1%
    Wind Speed 0 to 20 m/s ± 3% Full Scale + least significant digit  0.1 m/s
    0 to 44 mph 0.1 mph
    Dew Point  –60Ëš to 80Ëš C ± 3Ëš C  0.1Ëš C
    –76Ëš to 175Ëš F ± 5.4Ëš F  0.1Ëš F
    Distance to Spot Ratio* 4:1
    Emissivity* Adjustable
    Response Time* <500 ms (95% response)
    Conforms to ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

    * Infrared Only

    **At 23Ëš C (73Ëš F) ambient

    † Integral Probe with Wind Speed Only

    Dependent on RH

    Additional Info

    Brochure

    Instruction Manual - English, Spanish, German, French

    Package Includes
