Gould-Bass CR2000 Black Light (N415385001)

    Gould-Bass CR2000 Black Light




    DISCONTINUED

    This product has been discontinued.
    Click Here to view the replacement product.


    Share this product
    • Product Code.:
      N415385001
    • Original Code:
      N415385001
    • Tech Support Available
    • Product Weight: 15.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description


    Rugged High Intensity Portable Black Light - Fan Cooled for Extended Bulb Life

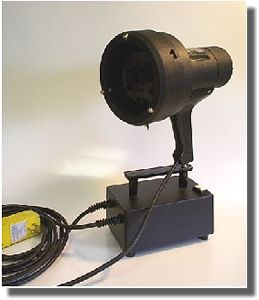

    The Gould-Bass Model CR-2000 is a remarkable new 100 W portable fan cooled black light unit which allows for hand held use during fluorescent inspection at running temperatures less than 85 degrees Fahrenheit. This fan cooled design feature benefits the user by providing more comfort and safety. Plus, its cool running temperature extends the bulb life.

    The CR-2000 design features include the lightweight 100W fan cooled portable lamp head with the "cord-through" handle for greater operator comfort, balance and safety. This unit also features a totally new ergonomically designed transformer base that is totally enclosed with a top mounted handle and post for resting the lamp head.

    The CR-2000 and associated CR-1025AR and CR-1025A retrofit black light heads utilize the standard 100W spot bulb that, with our transformer base, produces high UV outputs greater than 5500 uw/cm2 at 15". All CR Model lamp heads are uniquely designed with a quick disconnect bezel for ease of bulb and filter cleaning and replacement.

    Technical Specs

    Technical Data
    Model Number CR-2000
    Complete Unit    		 CR-2000X
    Complete/50 Hz.

    CR-1025A
    Lamp Head Only

    		 CR-1025AR
    Lamp Head Only
    Part Number N415385001 N415393001 N415384001 N415386001
    Line Voltage

    115V, 60 Hz,
    Single Phase

    		 220V, 50 Hz
    Single Phase    		 N/A N/A
    Line Current 1.3 Amps 0.71 Amps 1.3 Amps 1.3 Amps
    Bulb

    N412405001
    100 Watt Med. Base

    		 N412405001
    100 Watt Med. Base    		 N412405001
    100 Watt Med. Base    		 N412405001
    100 Watt Med. Base

    Wavelength

    		 320-400nm (UVA) 320-400nm (UVA) 320-400nm (UVA) 320-400nm (UVA)
    UV Intensity 5500 uw/cm2 at 15" 5500 uw/cm2 at 15" 5500 uw/cm2 at 15" 5500 uw/cm2 at 15"
    Running Temperature

    <85 Deg. F
    at 70 Deg. F Ambient Temp.

    		 <85 Deg. F
    at 70 Deg. F Ambient Temp.    		 <85 Deg. F
    at 70 Deg. F Ambient Temp.    		 <85 Deg. F
    at 70 Deg. F Ambient Temp.
    Bulb Life Average 5000 Hrs. Average 5000 Hrs. Average 5000 Hrs. Average 5000 Hrs.
    Restrike Delay 3 Minutes (approx.) 3 Minutes (approx.) 3 Minutes (approx.) 3 Minutes (approx.)
    Warm-up Time 3 Minutes (approx.) 3 Minutes (approx.) 3 Minutes (approx.) 3 Minutes (approx.)
    Electrical Safety Features 3 Wire GFI 3 Wire GFI 3 Wire GFI 3 Wire GFI
    Weight 11.5 lbs. 11.5 lbs. 3.0 lbs. 3.0 lbs.
    Lamp Dimensions:
    Lamp Head
    Transformer Base
    9.5" L, 6" Dia., 10" H
    7.5" L, 4.75" W, 7" H
    9.5" L, 6" Dia., 10" H
    7.5" L, 4.75" W, 7" H
    9.5" L, 6" Dia., 10" H
    9.5" L, 6" Dia., 10" H
    Cable Dimensions:
    Main Power Cable
    Lamp Head to Base
    10’ (with GFI Plug)
    10’ Straight Cable
    10’ (with GFI Plug)
    10’ Straight Cable

    20’ Straight Cable

    2’-10’ Coiled Cable

    Features

    • 100 W Spot bulb provides high intensity black light
    • Cool Running <85 Deg. F for operator comfort and safety
    • Quiet built-in fan dramatically reduces running temperature
    • Fan cooled head provides extended bulb life
    • Retrofits to existing 100W black light units
    • High UV output >5500 uw/cm2 at15 inches
    • Available for installation PT and MT equipment
    • Easy to change bulb and filter
    • "Cord through" handle for greater operator comfort, balance and safety
    • Rugged, ergonomically designed
    • New compact enclosed transformer base
    • Main cable supply with ground fault protection
