Synergys LeakShooter Ultrasonic Leak Detector V3+ Pro (LKS1000-V3-PLUS-PRO)

The Synergys LeakShooter® LKS1000-V3+ Pro Ultrasonic Leak Detector is the latest version of the V3 LeakShooter designed to find leaks in steam traps, compressed air, gas and vacuum equipment. This ultrasonic leak detector features steam trap diagnostic software which automatically diagnose the condition of your steam trap. The LEAKSHOOTER® LKS1000-V3+ Pro also operates as a point-and-shoot thermal camera solution for leak detection.  A USB cable is included with purchase, allowing the user to upload photos directly and attach to reports as needed.

STRAPSHOOTER® Steam Trap Software

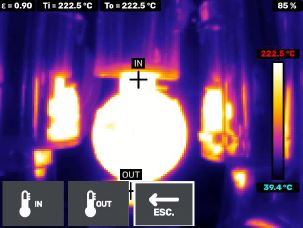

STRAPSHOOTER® is an extremely sensitive automatic stream trap analyzer that uses an embedded infrared pyrometer to measure pipe temperature T° IN & T° OUT. The STRAPSHOOTER® software will automatically diagnose your steam trap's operating condition and allows you to see, hear, analyze and report your steam trap's current state. Easy to use, the LeakShooter LKS1000-V3+ Pro and STRAPSHOOTER® software is ready to use right out of the box.

Thermal Camera with Point & Shoot Technology

When pointed at a potential leak, a dynamic yellow target appears on the color LCD 5.7" 640 x 480 pixel screen. When the source of the leak is detected, the target turns red and shrinks as it hones in its specific location. To record the leak, take a picture by pressing the camera button. Each photo shows the recorded decibels, flow rate, estimated annual cost of leak and LEAKSCORE indicating the severity of the leak. Each photo is also numbered, dated and time-stamped.  Traditional methods of listening for leaks also work with the LeakShooter V3+ Pro by using the supplied professional headphones that plug directly into the unit.

The thermal camera (160 x 120 pixels with 50 mK sensitivity) records the temperature of the leak and its surrounding apparatus. Emissivity is adjustable with the up and down arrows on the unit. Pictures of thermal images can be named and saved with the virtual keyboard.

Built-In Cost Savings Calculator

The LeakShooter LKS1000 V3+ Pro has a built-in annual cost savings calculator that documents the cost of the leak relative to its severity. The LeakShooter LKS1000-V3+ Pro finds compressed air leaks that often comprise 20-40% of energy costs associated with having compressed air apparatuses. Systematically checking for and eliminating air leaks can save thousands of dollars in energy costs each month or year depending on the size of your operations.

Multi-Purpose with Large Storage Capacity

The new LeakShooter V3+ Pro can now be used not only for compressed air, gas and vacuum leak detection, it can also assist with steam trap monitoring, bearing monitoring, electrical applications like partial discharge, corona effects, punctured isolators and electrical tracking detection. Ergonomically designed, the lightweight LeakShooter V3+ Pro can store up to 1,000 images and last up to 6 hours on a single charge.

Highly Sensitive

The LeakShooter LKS1000-V3+ can detect leaks no bigger than the size of a syringe needs at a distance of 30+ yards (20 meters). Leaks can be detected in all types of industrial environments thanks to the ability to adjust the volume gain on the device that filters out ambient noise.
