Synergys LeakShooter Ultrasonic Leak Detector V2+ (LKS1000-V2-PLUS)

Synergys LeakShooter Ultrasonic Leak Detector V2+




DISCONTINUED

Click Here to view the product replaced by this product.
Click Here to view the product that replaced this product.

This product has been discontinued.
Click Here to view the replacement product.


  • Product Code.:
    LKS1000-V2-PLUS
  • Tech Support Available
  • Product Weight: 15.00

HAVE A QUESTION?
   Hours:   8:00 am to 4:30 pm CST

Description

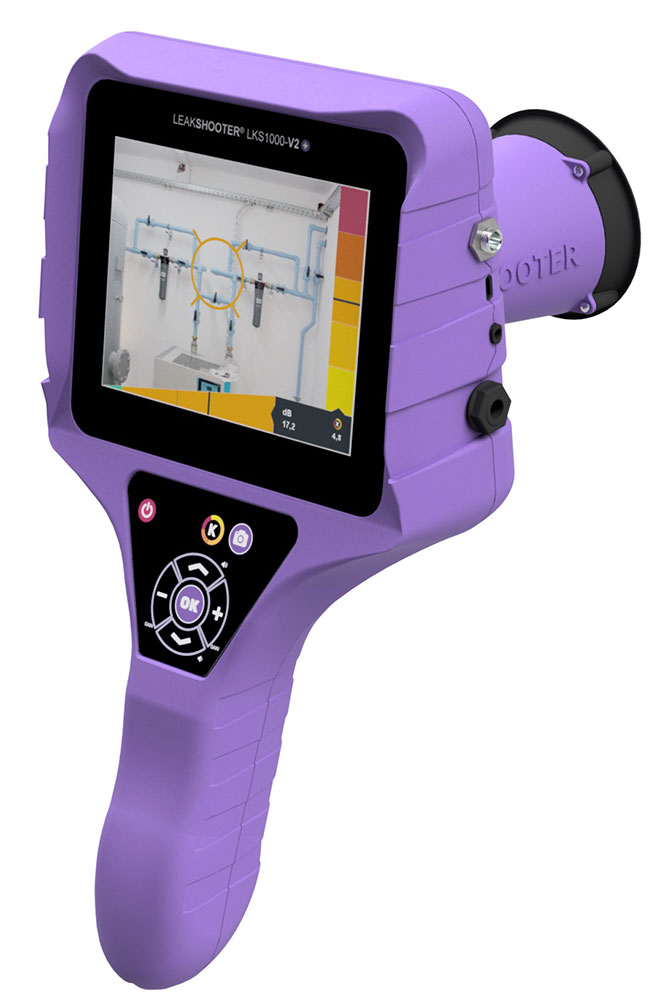

The Synergys LeakShooter® LKS1000-V2+ Ultrasonic Leak Detector is the latest version of the V2 LeakShooter designed to find leaks in compressed air, gas and vacuum equipment.

Ultrasonic Industrial Imager

The LeakShooter LKS-1000-v2+ industrial ultrasonic imager can now be used to inspect compressed air, gas, and vacuum equipment. It can also assist with steam trap monitoring, bearing monitoring, electrical applications like partial discharge, corona effects, punctured isolators, and electrical tracking detection. Ergonomically designed, the lightweight LeakShooter V2+ can store up to 1,000 images and last up to 6 hours on a single charge.

Huge Cost Savings

The LeakShooter LKS1000-V2+ finds compressed air leaks that often comprise 20-40% of energy costs associated with having compressed air apparatuses. Systematically checking for and eliminating air leaks can save thousands of dollars in energy costs each month or year, depending on the size of your operations.

Simply Point & Shoot

The LeakShooter LKS1000-V2+ is easy to operate. To use, just film, view, and photograph the precise location where compressed air, steam, pressurized gas, or vacuums are leaking. The LeakShooter V2+ will be able to locate leaks with a dynamic, white circular target on its display along with a colored circle and cross to indicate the leak severity. Each photo shows the recorded decibels, flow rate, estimated annual cost of the leak, and LEAKSCORE indicating the severity of the leak. Each picture is numbered and date and time stamped for ease of documentation. Traditional methods of listening for leaks also work with the LeakShoot V2+ by using the supplied professional headphones that plug directly into the unit.

Highly Sensitive

The LeakShooter LKS1000-V2+ works at a distance of 30+ yards (20 meters) and can detect leaks no bigger than the size of a syringe. Leaks can be detected in all types of industrial environments thanks to the ability to adjust the gain on the device filter out ambient noise.

Easy Uploads

Photos can be uploaded directly onto a PC via a supplied USB cable and can be readily attached to your inspection reports. A USB cable is included with purchase.


Leak detected using LeakShooter V2+. Shows decibels, rate,
LEAKSCORE (K value) and cost of leak per year.

Videos

Specs

Specifcations
Sensitivity Detects a leak of 0.1 mm at 3 bars at 20 m
Camera Color 640 x 480 pixels + LED lighting
Display LCD color 5.7“ 640 x 480 pixels
Pictures BMP, number, name, date and time
Dynamic Target White circle for leak detection
Colored circle with cross for the leak severity
Measurements dB RMS and MAX RMS
Memory Up to 1000 pictures, can be uploaded to PC
Communication USB cable supplied
US sensor Open type - Bandwidth ± 2 kHz to - 6 dB
Central frequency 40 kHz ± 1 kHz
Adjustable frequency mixer from 30 to 50 kHz
Adjustable gain from 40 to 120 dB
Headphones Adjustable volume
Power supply Nickel-metal hybride (NiMH)
Autonomy 6 hours
Temperature range - 10°C to + 50°C
Dimensions H : 310 mm - W : 165 mm - D : 65 mm
Weight 700 gr for the LKS1000
3.8 kg including ABS case
CE Standards CEM 2004/108/CE : EN61000-6-4 & EN61000-6-2
Accessories

Ultrasonic emitter - LKSDOME
Flexible 400 mm US Sensor - LKSFLEX
Flexible 1500 mm US Sensor - LKSFLEX1500
Mechanical US sensor (steam trap - bearing) - LKSPROBE
Bluetooth headphones - LKSHEAD
Bluetooth Speaker - LKSSPEAKER

Additional Info

Package Includes

  • LEAKSHOOTER LKS 1000-V2+ camera
  • Professionnal headphones
  • Battery charger
  • USB cable
  • Instructions of use
  • 2 years warranty certificate
  • Quality control certificate
  • Carrying case
