The Labino MidBeam 2.0 is a robust handheld lamp, designed for heavy industries with difficult operating environments, with an IP68 waterproof classification. The MidBeam 2.0 is based on LED technology and is more compact and lightweight than many comparable products on the market today. A 4-color battery indicator (green for over 75%, yellow for 50-65%, orange for 25-50% and red for less than 25%) as well as the ability to operate while the battery is charging. The MB Zeus and MB Hermes have mains power supply or battery options to suit inspection requirements. The lights also utilize specialized filters that do not suffer from solarization, preventing intensity deterioration. Filters do not need to be replaced.
The innovative Athena Spray accessory is available on both the Zeus and the Hermes Battery Models. The Athena Spray allows the user to operate the aerosol can simultaneously with the MidBeam 2.0. Certifications may change based on the addition of the Athena accessory to the MidBeam 2.0.
MidBeam 2.0 Standard is classified as a Risk Group 3 (High Risk) UV light in accordance with IEC / SS-EN 62471.

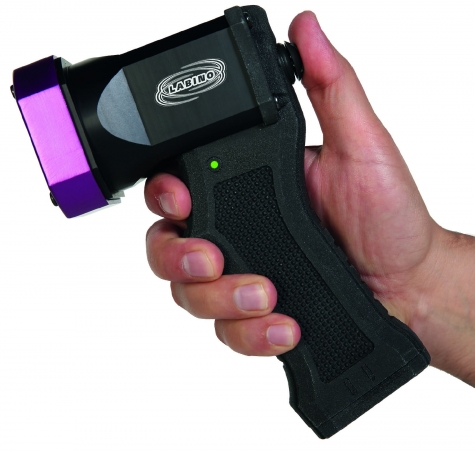

MidBeam 2.0 ZEUS
The Zeus version generates an intensity of ≈ 5,000 μw/cm2 at 15" (38 cm) and is equipped with a white light LED for after inspection. Battery run time is two hours. The Zeus model meets Rolls Royce RRES 90061, ASTM E3022, Airbus AITM6-1001, Pratt & Whitney, and ISO 3059 certification requirements. It is also IP68 waterproof and CE Marked. The Aerospace model of the Zeus MidBeam does not have a separate white light for after inspection.
MidBeam 2.0 HERMES
The Midbeam 2.0 Hermes generates an intensity of ≈ 4,000 μw/cm2 at 15" (38 cm). Battery run time is 3 hours. The Hermes model meets Rolls Royce RRES 90061, ASTM E3022, Airbus AITM6-1001, Pratt & Whitney, The Boeing Co,, ISO 3059 and USAF certification requirements. It is also IP68 waterproof and CE Marked. The Hermes is ideal for aerospace applications, offering an extremely homogenous beam without any footprints showing from the LEDs, shades, dark spots, or other defects in the beam.
| MB Zeus | MB Hermes | |
| Standards Met | ASTM E3022, Airbus AITM6-1001 | Rolls Royce RRES 90061, ASTM E3022, Airbus AITM6-1001 |
| Certifications | IP68 Waterproof, CE Marked | IP68 Waterproof, CE Marked |
| Intensity at 15" (38 cm) | ≈ 5,000 µW/cm2 | ≈ 4,000 µW/cm2 |
| Visible Light | ≈ 1 lux (.09) foot-candle (380-780 nm) | |
| UV LEDs | Four | |
| White Light LEDs | One | None |
| Weight | Battery Version - 781 g (11.55 oz) | |
| Housing Diameter | 3.15" (80 mm) | |
| Chargers | (1) 100-240 VAC for use from an electrical outlet | |
| Battery Version | ||
| Power Requirement | (2) 3.6 V, 3400 mAh Lithium-Ion Batteries | |
| Run Time | 2 Hours | 3 Hours |
| Charge Time | Approximately 4 Hours | |
| Mains Version | ||
| Power Supply | 100-240 VAC, 50-60 Hz | |
| Output | 12V DC 3A/40W | |
