If you would like to add the CLGOPLUS please contact Berg Engineering.
Waygate Technologies Krautkramer DMS Go+ Ultrasonic Thickness Gauges, a Baker Hughes business product (formerly GE Inspection Technologies), provide accurate, reliable, and comprehensive thickness inspection data in a wide range of applications and environments. The DMS GO+ features the same hardware and operating platform as the USM Go+ flaw detector, combining the two to offer a powerful instrument. These Gauges are lightweight, ergonomic, and IP67 rated for operating in harsh environments. The DMS Go+ is ideal for inspections in oil & gas, power generation, aerospace, and metals industries.
The DMS Go+ includes automatic gain control for repeatability and corrosion monitoring, and built-in temperature compensation for accurate measurement up to 1000°F. An on-board data recorder can hold thousands of thickness readings including A-scan, B-scan, and MicroGrid attachments, which can be exported to user data management systems in various file formats. Three models are available to best suit a wide variety of inspection needs.
DMS Go+ Basic
DMS Go+ Standard
DMS Go+ Advanced
| Display | 5" 800 x 480 pixels (W x H) 108 × 65 mm / 4.25 x 2.55” >400 cd/m2 |
| Size (WxHxD) | 175 x 111 x 50 mm / 6.88 x 4.37 x 1.96” |
| Weight | 877 g / 1.87 lbs |
| Protection class | IP 67 |
| Operating temperature | 0 – 55 °C / 32 – 131 °F |
| Battery | Li-Ion, rechargeable > 8 hours operation time |
| Power adapter/charger | 100 – 240 V AC, 50/60 Hz |
| Probe connector | Dual Lemo-00 (T/R) |
| PC interface | Micro USB |
| Memory card | SD-Card 16 GB max |
| Data recorder (model specific) |
100.000 readings per file. Multiple files can be stored on SD card. 8 file formats. Attachment of A-Scan, B-Scan and micro grid |
| Pulser | 120 – 300 V Spike wave Automatically matched to probe |
| Pulse Repetition Frequency | 4, 8 or 16 Hz selectable |
| Receiver (model specific) |
110 dB dynamic. Automatic gain control. Manual –high, -low, -auto |
| Measurement range | 0.4 – 14,000 m (0.01 – 551”) |
| Units | mm, inch, µs |
| Digital display resolution | 0,01 mm or 0,1 mm (0.001” or 0.01”) selectable |
| Measurement techniques (model specific) |
Zero crossing. IP to 1st echo. Multi echo, TopCoat, Auto-V |
| Calibration (model specific) |
One-point. Two-point. Auto or Manual On-block and Off-block Zero. Automatic V-Path correction |
| Display mode (model specific) |
Thickness and A-Scan. Temperature corrected thickness. B-Scan. Min/Max capture. Differential |
| Compliance | EN 61010, EN 61326-1, EN 12668, ASTM E 1324, E317, ANSI/ NCSL Z 540-1-1994, MIL-STD 45662A, MIL-STD 2154, EN 15317 |

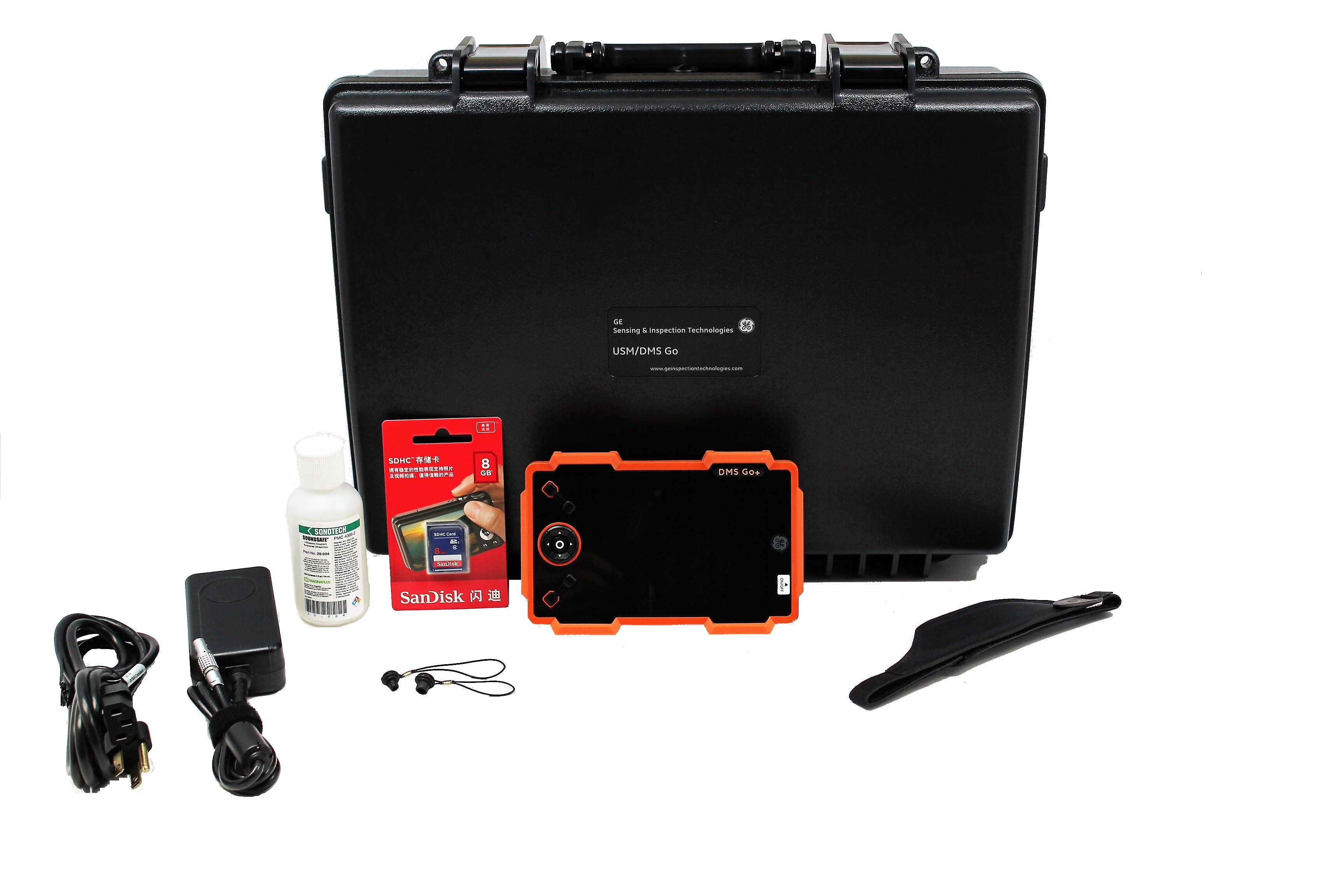

The DMS Go+ Instrument Includes:
