Parker DA200 Series Contour Probe AC-DC (DA-200-SERIES)

    Parker DA200 Series Contour Probe AC-DC
    Starting at:

    $587.00

    IN STOCK

    This product has been discontinued.

    ADD TO CART

    Share this product
    • Product Codes:
      DA200AKIT
    • Tech Support Available
    • Product Weight: 0.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

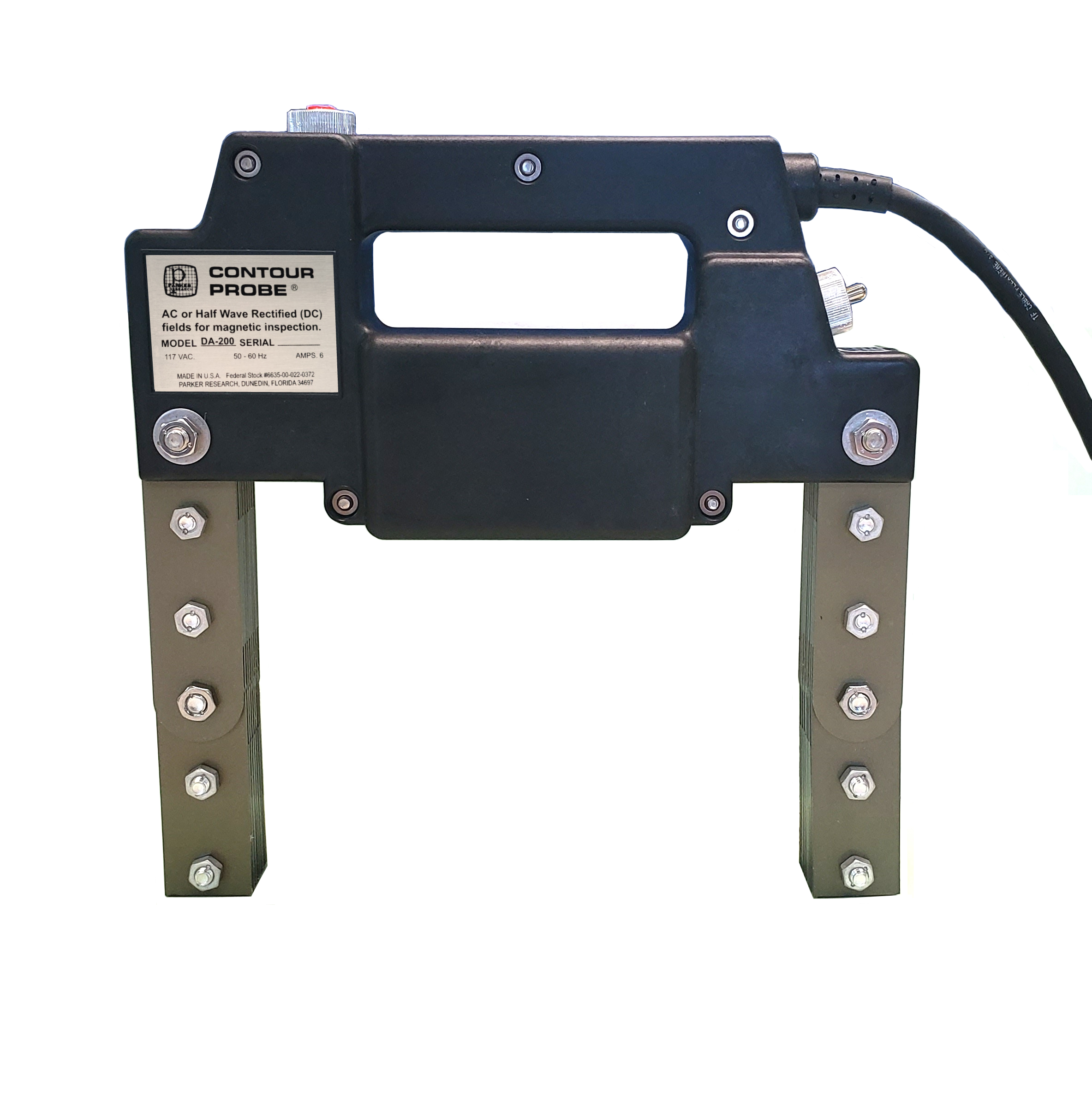

    The DA-200 Contour Probe is a portable, self-contained instrument designed to produce a magnetic field on or within ferro-magnetic materials. The selective AC and pulsed DC functions are built into a single reliable instrument.
    The AC mode produces an intense AC field for detection of surface defects and demagnetizing after inspection. The DC mode produces an intense pulsed DC field for detection of some sub-surface defects. Combined with the flexibility of articulating legs and a rugged molded housing, the Contour Probe can be used on nearly any part or surface contour... in the lab, factory, or field site.
    Your magnetic particle applications need the versatility and reliable performance advantages of the Parker Contour Probe. An industry standard with 35 years of NDT service.
    Versatility and powerful performance in a rugged, reliable instrument
    • Constant AC or pulsed DC fields with the flip of a switch; for the location of surface and some sub-surface defects
    • Apply continuous or residual magnetic fields and demagnetize too
    • Use with dry powder, wet fluorescent or visible
    • High impact-molded housing
    • One-year repair/replacement guarantee

    Due to shipping regulations, aerosols must ship via ground delivery.

    OPTIONAL KITS

     A KIT

    A Kit Items



    Included:

    Instrument, 1 lb. Red Powder ,1 lb. Gray Powder
    PB1 Applicator, Steel Carrying Case

     A/B KIT

    A/B Kit Items



    Included:

    Instrument, 1 lb. Red Powder, 1 lb. Gray Powder
    PB1 Applicator, Steel Carrying Case, Aerosol Can of Fluorescent Particles, 4W UV Light

     PL-A KIT



    Included:

    Instrument, 1 lb. Red Powder ,1 lb. Gray Powder
    PB1 Applicator, Plastic Carrying Case

    PL- A/B KIT



    Included:

    Instrument, 1 lb. Red Powder, 1 lb. Gray Powder
    PB1 Applicator, Plastic Carrying Case, Aerosol Can of Fluorescent Particles, 4W UV Light


    Specs



    DA-200

    DA-200S

    A-210

    A-210S
    Physical

    11 H × 10.75 L × 2.75 W
    Line Voltage Single Phase 115 VAC
    50/60 Hz    		 230 VAC
    50/60 Hz    		 115 VAC
    50/60 Hz    		 230 VAC
    50/60 Hz
    Line Current 6 A
    AC/DC    		 4 A
    AC/DC    		 9.5 A
    AC    		 4 A
    AC
    Duty Cycle

    2 minutes on – 2 minutes off
    Weight 12 lbs (5.44 kg)
    Construction

    Glass-filled nylon housing
    10 foot (3 m) 3-wire power cord
    Span

    18 in. (457 mm) across poles
    Field AC/DC AC/DC AC AC

    Additional Info

    Product Data Sheet
