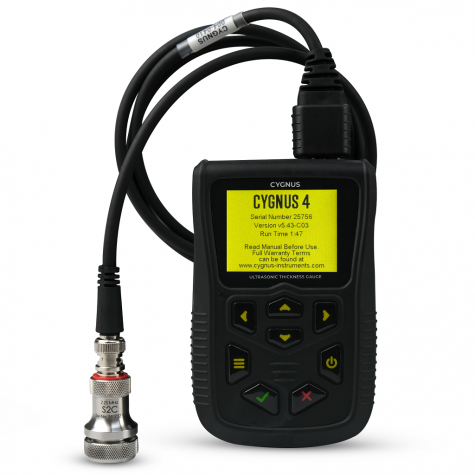

Cygnus 4 General Purpose - Ultrasonic Thickness Gauge

This robust thickness meter is truly simple to use. It has an intuitive menu and, thanks to the Multiple-Echo technique, it accurately measures metal thickness without removing protective coatings.

Key Features of the Cygnus 4 General Purpose Gauge

  • Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies
  • Deep Coat function ignores coatings up to 0.8 inch (20 mm) thick
  • Simple, one-point calibration – no zeroing required
  • Min/Max measurement limit functions
  • Visual and vibrate alert
  • Intuitive easy to use menu
  • Large and bright front color LCD display
  • Extremely rugged enclosure – shock and impact proof to US MIL STD 810G
  • Environmental sealing (water and dust proof) to IP67 – US MIL STD 810G
  • Can be upgraded to 4+ or 6+ at an additional cost.

Cygnus-Pioneered Multiple Echo Technique
  • Uses three return echoes to give a truly accurate, error-checked metal thickness measurement – ignoring coatings up to 0.8 inch (20 mm).
  • Accepted by all the major Classification Societies.

Specs

Materials Velocities from 0.0390 – 0.3543 in/us (1,000 – 9,000 m/s)
Accuracy ±0.002 inch (±0.05 mm) – in Multiple-Echo measurement mode, when calibrated and measuring the same material as calibrated on
Resolution 0.005 inch (0.1 mm) or 0.002 inch (0.05 mm)
Transducer Options Single crystal transducers
Measurement Range in Steel 0.040 – 10 inch (1 – 250 mm) depending on selected transducer and configuration, material and temperature
Connector 2 x Lemo 00
Power 3 x AA / R6 batteries
Battery Life 10 hours continuous measurement
Electronics Dual channel pulser
Display 2.4 inch QVGA LCD, 47 x 37 mm
Size 3.3 x 5.1 x 1.4 inch (84 x 130 x 35 mm)
Weight 10.5 oz (300 g) (inc. batteries)
Operating Temp. 14°F – 122°F (-10°C to 50°C)
Environmental Rating IP67
MIL STD 810G Method 501.6 (high temp 131°F (+55°C))
MIL STD 810G Method 502.6 (low temp -4°F (-20°C))
MIL STD 810G Method 507.6 (humidity 95%)
MIL STD 810G Method 512.6 (immersion 1 metre for 30 mins)
Shock and Impact MIL STD 810G Method 514.7 (vibration)
MIL STD 810G Method 516.7 (shock 20g)
MIL STD 810G Method 516.7 (transit drop 1.22 m)
Standards Designed for EN 15317
Compliance CE, UKCA, RoHS
Warranty 3 years on gage and 6 months on transducer

Package Includes

  • Cygnus 4 gage
  • Operating manual
  • Neck strap
  • Ultrasonic transducer
  • Moulded transducer cable
  • Accessory pouch, containing; 3 x AA batteries, blue couplant gel, 15 mm (or ½ inch) steel test block, spare membranes, membrane key, membrane couplant.
