FlawTech AWS D1.5 UT Bridge Kit (BK-1)

    FlawTech AWS D1.5 UT Bridge Kit
    Starting at:

    $14,140.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • Product Code.:
      BK-1
    • Tech Support Available
    • Product Weight: 300.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description



    The first-ever UT Training and Testing Flawed Specimen Kit specifically designed for the Bridge Industry. Developed with input from infrastructure experts from the ASNT Infrastructure Committee and AWS D1.5 Committee.

    • The Kit assists in the training and testing of UT Technicians that will be providing service to the Bridge Industry for both Conventional and PAUT
    • Joint Designs used are some of the most common found in Bridge Industry and are referenced in the AWS D1.5
    • Kit contains 24 Flaws which cover a wide range of fabrication and in-service flaw types including transverse cracks
    • Great for validating UT Technicians practical skill sets prior to commencing projects

    Features

    • Recommended Optional Plate (not included in the Kit)
                   o Specimen #9: #B-U3b, Double V Groove Weld-Butt Joint Plate. w/ 4 flaws 3.0” T x 30” x 12” (weld length)

    • Radiography
                   o Digital & Film Radiograph Film and Technique Sheets

    • Kit Specimens #’s may be purchased individually.
    • Custom Alloys Available

    Specs

    Specifications:

    • Set of 8 Specimens
    • Specimen Alloy:  Mild Carbon Steel
    • Each Specimen will contain 3 flaws
    • Total of 24 flaws in the Kit
    • Flaws that are designed to be detectable using UT (Conventional & PAUT)
    • Flaws are a specially selected to represent fabrication and in-service indications

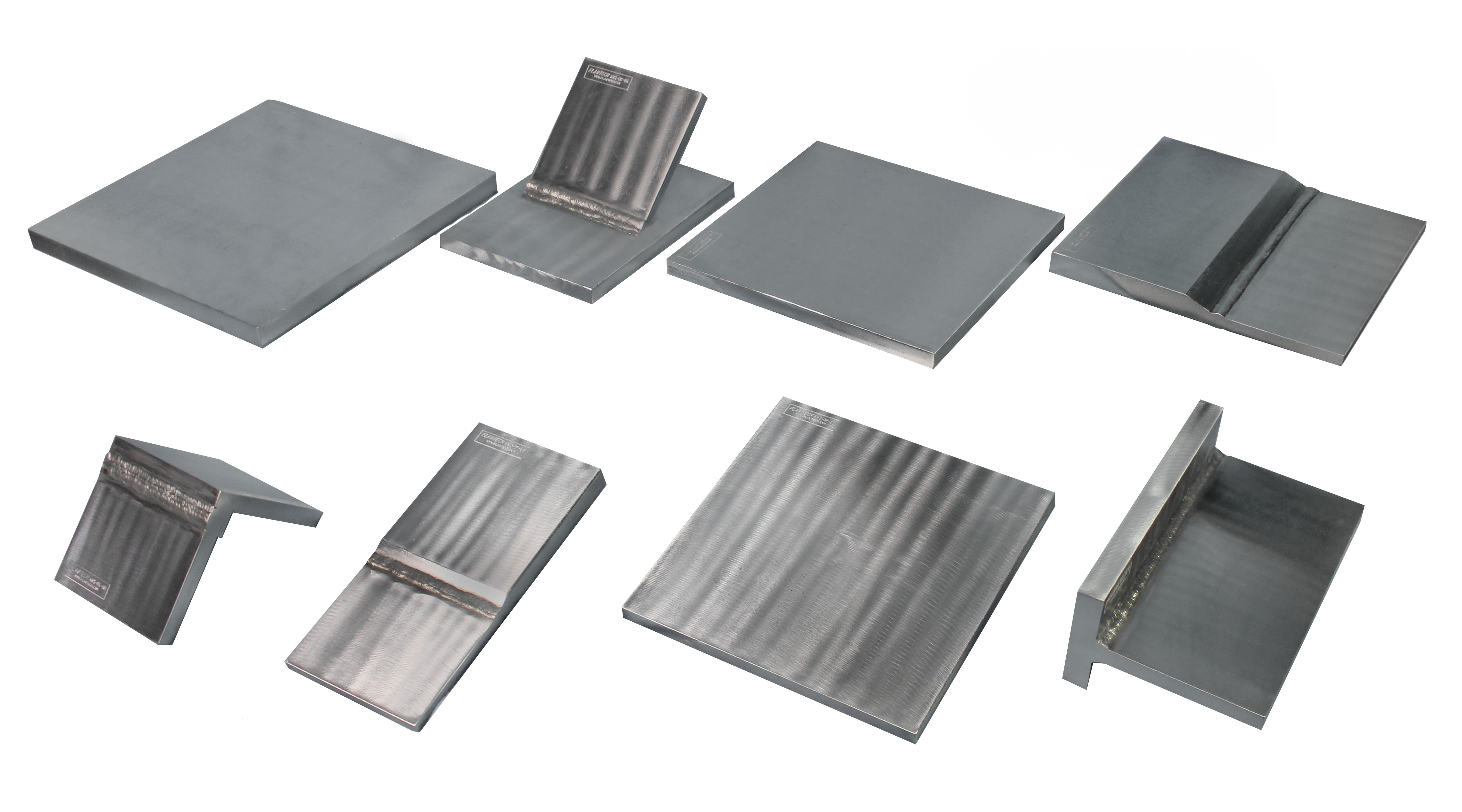

    Kit Specimen Design and Joint Designations per Figure 2.4 AWS D1.5 Include:

    • Specimen #1: #B-U3b, Double V Groove Weld-Butt Joint Plate w/ Flush Crowns, 0.75” T x 12” X 12”
    • Specimen #2: #B-U3b (modified), 2/3-1/3 Double V Groove Weld-Butt Joint Plate w/ Flush Crowns, 1.0” T x 14” x 14”
    • Specimen #3: #B-U3b, Double V Groove Weld-Butt Joint Thickness Transition w/ Chamfering and Offset Alignment Plate w/ As Welded Crowns, 1.0” to 0.5” T x 12” x 12”
    • Specimen #4: #B-U2, Single V Groove Weld-Butt Joint Plate w/ Flush Crown & Root, 0.75” T x 12” x 12”
    • Specimen #5: #TC-U5b, Double Bevel Groove Weld -T-Joint (Flange to Web) w/ As Welded Crowns, 0.75” T x 6” Web to 1” T X 4.5” Flange x 12” (weld length)
    • Specimen #6: Recommended, Single V Groove – Skewed Joint w/ Back Gouge, 45° Skewed Connection Plate w/ As Welded Crown, 0.5” T x 6” x 6” (weld length) Connection to 0.75” T x 8” x 10” Web
    • Specimen #7: #B-U3b, Double V Groove Weld-Butt Joint Thickness Transition w/ Chamfering and Centerline Alignment Plate w/ As Welded Crowns, 1.0” to 0.5” T x 12” x 6” (weld length)
    • Specimen #8: #TC-U4c, Single Bevel Groove Weld-Corner Joint Corner w/ Backing Bar & As Welded Crown, 0.75” T x 6” x 6”

    Package Includes

    • Certificate of Conformance
    • As Built CAD Drawings
    • UT Inspection Reports
    • Measuring & Test Equipment Certificates
    • Test Sheets (used during technician training and testing)
    • Shipping Container: 32” x 20” x 21”
