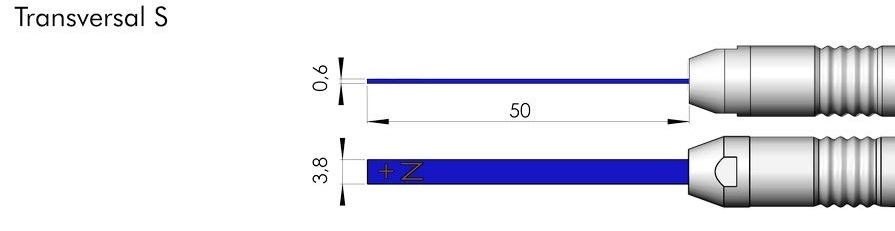

MAGSYS Transversal Probe S for HGM09s (BE-HGM-TPS)

    MAGSYS Transversal Probe S for HGM09s
    Starting at:

    $552.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • NEW Product
    • Product Code.:
      BE-HGM-TPS
    • Tech Support Available
    • Product Weight: 2.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description



    The HGM09s is standardly equipped with a transversal probe.

    An axial probe and a thin transversal probe for the measurement inside small gaps are also available. All probes are equipped with internal memory for identification, parametrization and linearization.

    The measuring range is up to 4.5 Tesla for the flux density and 3800 kA/m for the field strength respectively. The resolution is down to 1 µT or 1 A/m.

    Additional features

    • Peak hold (positive and negative)
    • Linearity adjustment
    • Null balance
    • Battery condition indicator with energy-saving mode

    The measuring values can easily be visualized and stored on the PC by pressing a key via the USB interface and a software package. Service and control functions are also available with the software.

    Features

    •

    Additional Info

    Brochure

    Package Includes

    MAGSYS HGM09 Transversal Probe S Only (Package Includes):

    • Transversal Probe S Only (1)
    • Probe Protector Case (1)
